Ascendo The10 PASSIVE ON WALL Immersive Audio Monitor Loudspeaker

  • Passive high-performance monitor
  • Thickness of 145mm
  • Time coherent 10″ (252mm) coaxial driver
  • Great efficiency with SPL 120dB cont.
  • 3D home theater realization with Dolby Atmos, Auro 3D or DTS:X

The The10 PASSIVE ON WALL (CCM10-P) is a very compact two-way passive loudspeaker system.

Utilizes a 10” (252mm) Low Frequency and 1” (25mm) exit High Frequency Coaxial driver.

It is uniquely placed to meet the requirements of living room and high performance home theater systems as front speakers, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure.

Use with our subwoofers will enable the CCM10-P to operate as small system that is remarkably powerful for its size.

-Time coherent 10″ coax point-source speaker type
-Vented enclosure
-Continuous Output @ 120dB cont. (123dB Peak)
-Frequency Range: 75Hz – 20kHz / -3dB
-Sensitivity : 97dB / 1W/m
-Impedance : 8 Ohms
-Power Handling : 500W
-Directivity horizontal: 85° x 85°
-Enclosure : Internally braced birch ply
-Black matt finish

Dimensions: W300 x H500 x D145 mm
Weight :17.0 kg

*All speakers are supplied with a front magnetic grille.

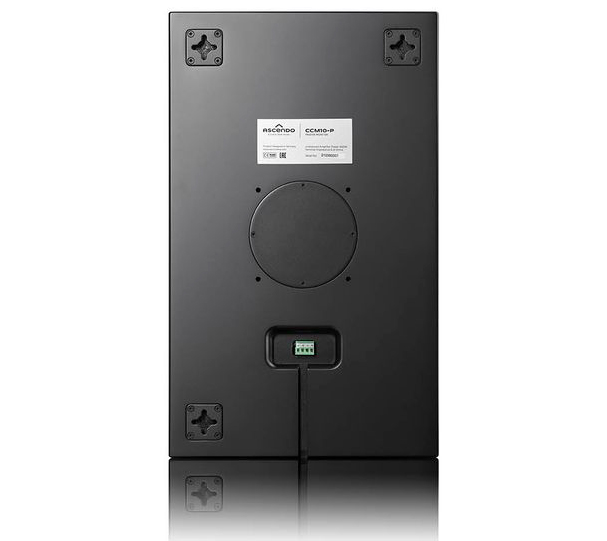

Built-in wall brackets for horizontal and vertical installation + VESA 100 mounting points

Custom colour option of piano lacquer (12 layers), colour of choice.

Price:  RM7,800 ea
