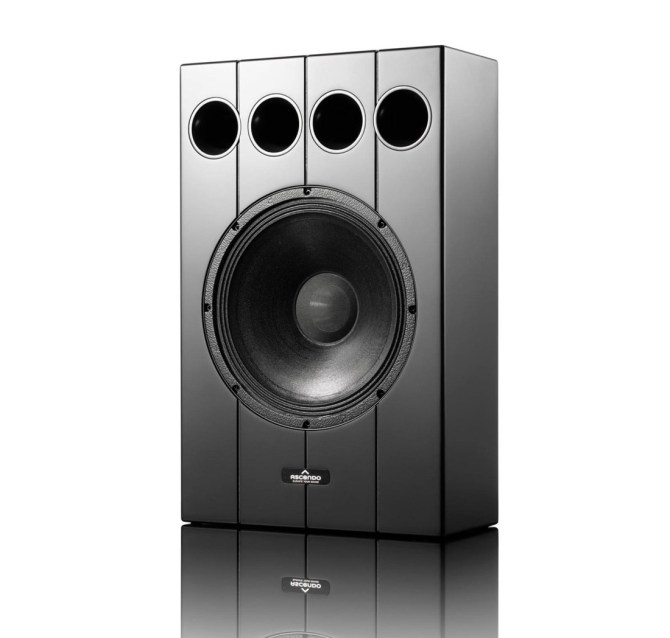

Ascendo The12 Passive On Wall Immersive Audio Monitor Loudspeaker

  • Passive high-performance monitor
  • Thickness of 175mm
  • Time-coherent 12″ coaxial driver
  • Great efficiency with SPL 123dB cont.
  • 3D home theater realization with Dolby Atmos, Auro 3D or DTS:X

The12 PASSIVE ON WALL in the ASCENDO monitor lineup, is a more dynamic and higher output alternative to the smaller The10 PASSIVE ON-WALL (10″)

Also it is a stellar performance value compared to its more expensive, even higher-performance sibling, The12 PRO PASSIVE ON WALL.

The combination of 12-inch mid-woofer and the exclusive, centrally arranged compression tweeter allows for a time-coherent and phase-accurate cinema loudspeaker a cut above the best of the cinema monitors in the market.

The highly solid enclosure, elaborately conceived in the light of over 20 years of speaker design experience, ensures extraordinary stable conditions to make parasitic vibrations a thing of the past.

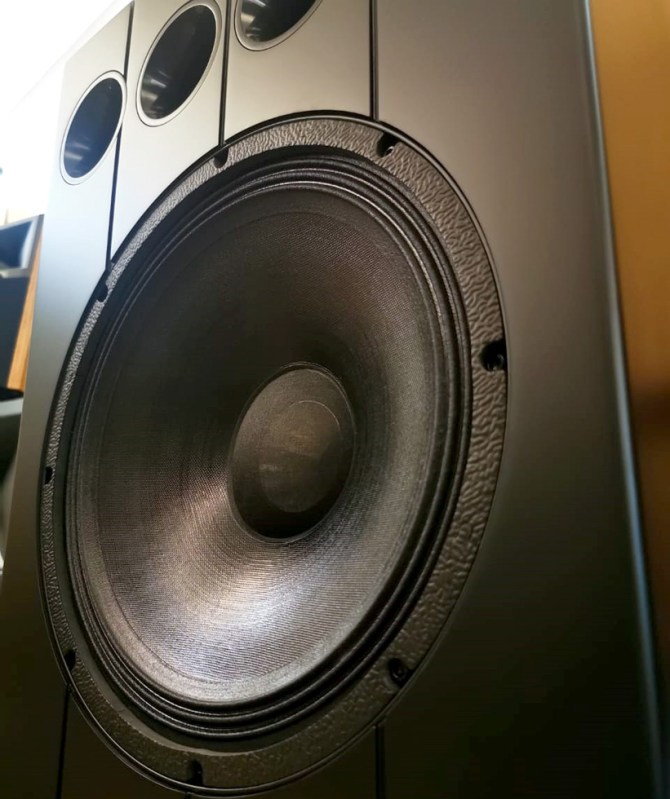

12″ woofer featuring lightweight paper cone and high-power long throw magnet system
1″ soft dome, 44mm voice coil with horn flare

This is time-coherent rendering of all acoustic events at the highest level, and The12 PASSIVE ON WALL’s extremely high efficiency makes it reach incredible volume levels and obtain an impressive cinema sound even with lower amplifier power.

A perfect solution as either screen channels, or also surround channels in large home cinema.

Input terminal of Phoenix 12 AWG push on binding post

-Time coherent 12″ coax point-source speaker type
-Vented enclosure
-Continuous Output @ 123dB cont. (126dB Peak)
-Frequency Range: 80Hz – 20kHz / -3dB
-Sensitivity : 98dB / 1W/m
-Impedance : 8 Ohms
-Power Handling : 600W
-Directivity horizontal: 85° x 85°
-Black matt finish

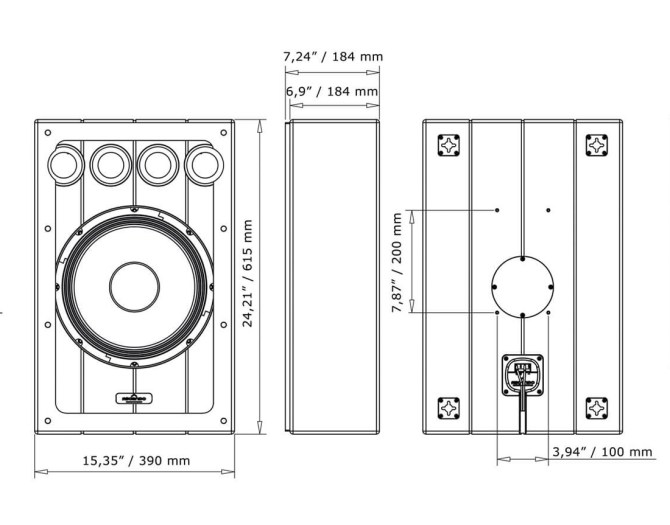

Dimensions: W390 x H615 x D175 mm (Grill depth: 9mm)
Weight : 22.0 kg

*All speakers are supplied with a front magnetic grille.

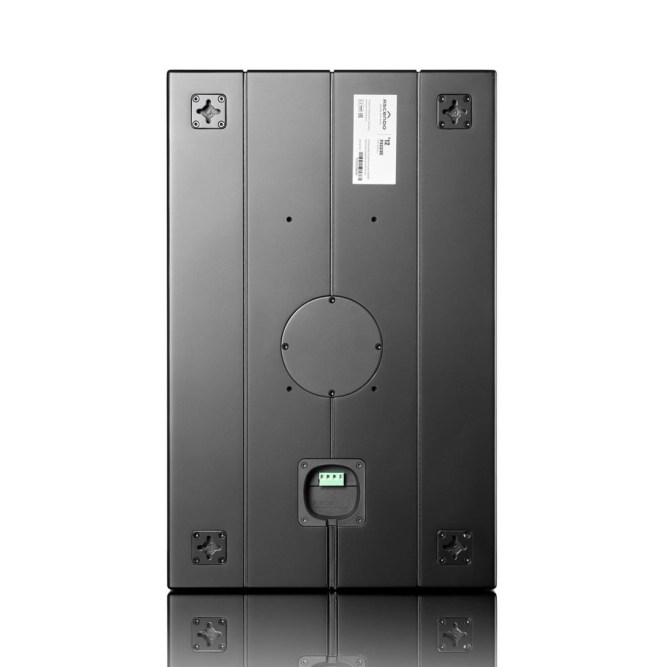

Built-in wall brackets for horizontal and vertical installation + VESA 200 x 100 mounting points

Custom colour option of piano lacquer (12 layers), colour of choice.

Price:  RM10,000 ea
