Ascendo The 6 Wedge 30 Immersive Audio Monitor Loudspeaker

  • Passive high-performance monitor
  • Enormously dynamic and powerful speaker
  • Compact, shallow pre-angled (30-degree)
  • Record-breaking 155 mm (6.1 in) deep
  • Flexible speaker mounting and orientation options
  • Time coherent 6.5″ (160mm) coaxial driver
  • Great efficiency with SPL 113dB cont.
  • 3D home theater realization with Dolby Atmos, Auro 3D or DTS:X

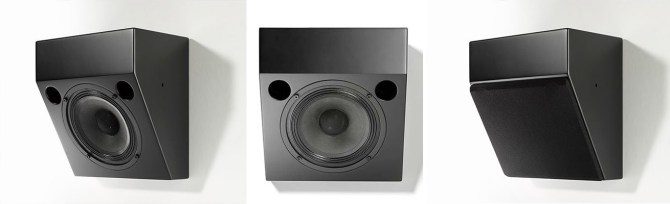

The 6 Passive Wedge 30 offers a very compact and shallow pre-angled speaker that can be installed in multiple locations where angling the speakers is mandatory.

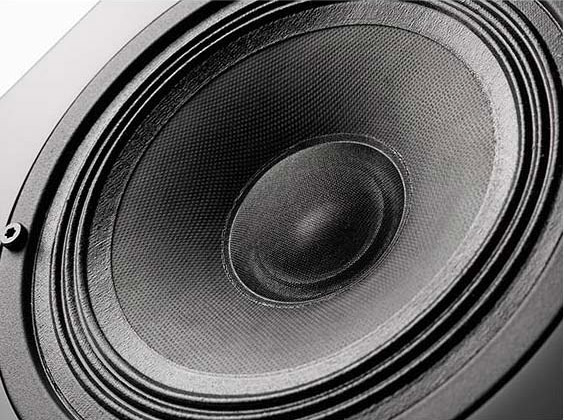

Utilizes a 6.5” (160mm) time coherent Coaxial Point Source driver featuring an 1” (25mm) soft dome tweeter.

This driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area.

Its 30-degree pre-angle meets the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs.

Considering the space occupied, its high efficiency of 93dB at 1W/1m and high-power handling allows it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.

The 6 Passive Wedge 30 is an enormously dynamic and powerful speaker, despite the 30-degree angle only a record-breaking 155 mm (6.1 in) deep with a very compact width and height.

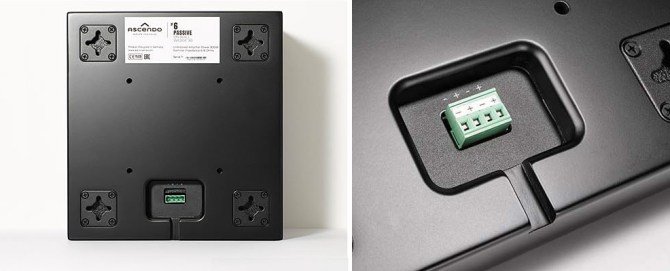

Phoenix speaker connection.

-Time coherent 6.5″ coax point-source speaker type
-Vented enclosure
-Continuous Output @ 113dB cont. (117dB Peak)
-Frequency Range: 80Hz – 20kHz / -3dB
-Sensitivity : 93dB / 1W/m
-Impedance : 8 Ohms
-Power Handling : 200W
-Directivity horizontal: 90° x 90°
-Enclosure : Internally braced birch ply
-Black matt finish

Dimensions: W240 x H155 x D255 mm
Weight : 4.5 kg

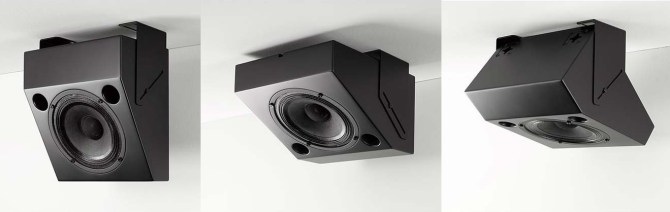

*Comes with mounting brackets for wal/ceiling, allows speaker to be angled further in two axes, to be hang in multiple ways.
*Built in VESA100 mouting points.

*All speakers are supplied with a front magnetic grille.

Custom colour option of piano lacquer (12 layers), colour of choice.

Price:  RM4,600 ea
