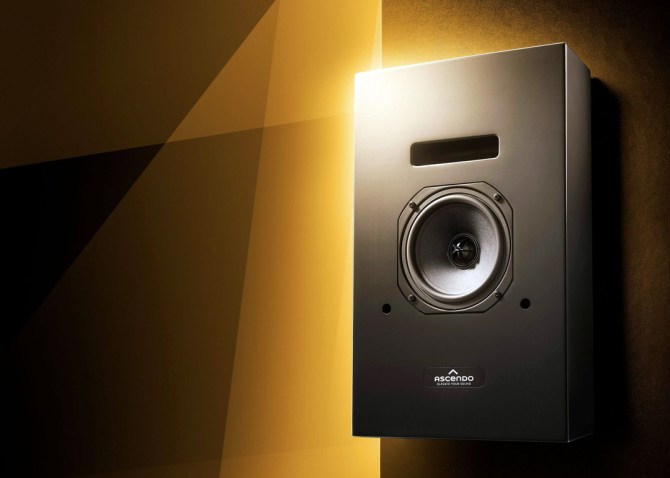

Ascendo The 5 CCM5-P Immersive Audio Monitor Loudspeaker

  • Passive high-performance monitor
  • Thickness of only 75mm
  • Heavy-duty 5.25″ (130mm) coaxial driver
  • Amazing acoustic bandwidth
  • Great efficiency with SPL 105dB cont.
  • 3D home theater realization with Dolby Atmos, Auro 3D or DTS:X

Quality is no longer a matter of size/budget now, this impressively demonstrates our smallest speaker model, CCM5-P, a true high-performance speaker whose centerpiece is a heavy-duty 13 cm large coaxial driver, provenient from the area of professional sound technology.

The effectiveness of the CCM5-P therefore allows for the combination with lower output power amplifiers.

Our top recommendation when it comes to the realization of smaller 3D home theaters operating with Dolby Atmos, Auro 3D or DTS:X.

Major advantage of the CCM5-P is its small depth of only 75 mm. This makes it the perfect choice for in-wall as well as on-wall assembly.

-Time coherent 5.25″ coax point-source speaker type
-5.25″ (130mm) Woofer with 1″ (25mm) Compression Driver
-Vented enclosure
-Continuous Output @ 105dB cont. (108dB Peak)
-Frequency Range: 85Hz – 20kHz / -3dB
-Sensitivity : 88dB / 1W/m
-Impedance : 8 Ohms
-Power Handling : 100W
-Directivity horizontal: 90° x 90°
-Enclosure : Internally braced birch ply
-Black matt finish

Dimensions: W250 x H400 x D75 mm
Weight : 4.0 kg

*All speakers are supplied with a front magnetic grille.

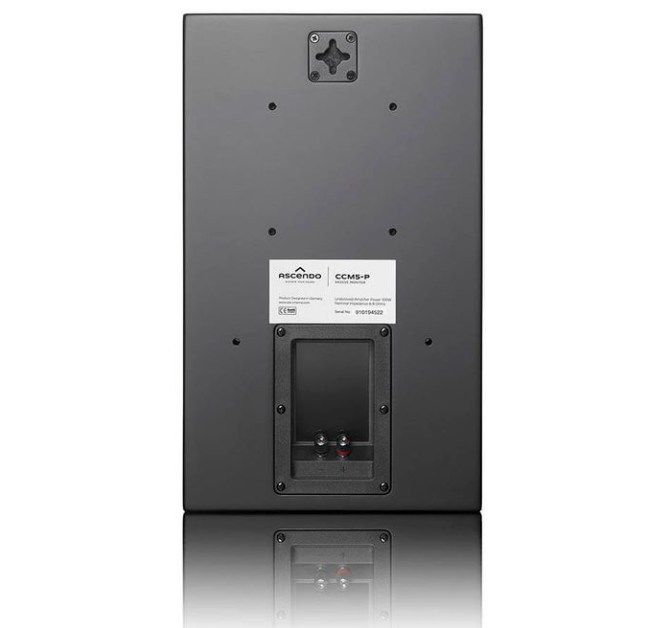

Built-in wall bracket + Vesa 100 mounting points + 2 through holes for direct wall or ceiling mount

Custom colour option of piano lacquer (12 layers), colour of choice.

Price:  RM3,000 ea
