- Passive high-performance monitor
- Time coherent 10″ (252mm) coaxial driver of wide angle axi-symmetric radiation covering large listening area
- High efficiency (98dB), high output (120dB cont.), high power handling (500W) to reach reference volume of cinema sound experience even with low amplifier power
- 30-degree pre-angle design meets the most 3D home theater realization with Dolby Atmos, Auro 3D or DTS:X

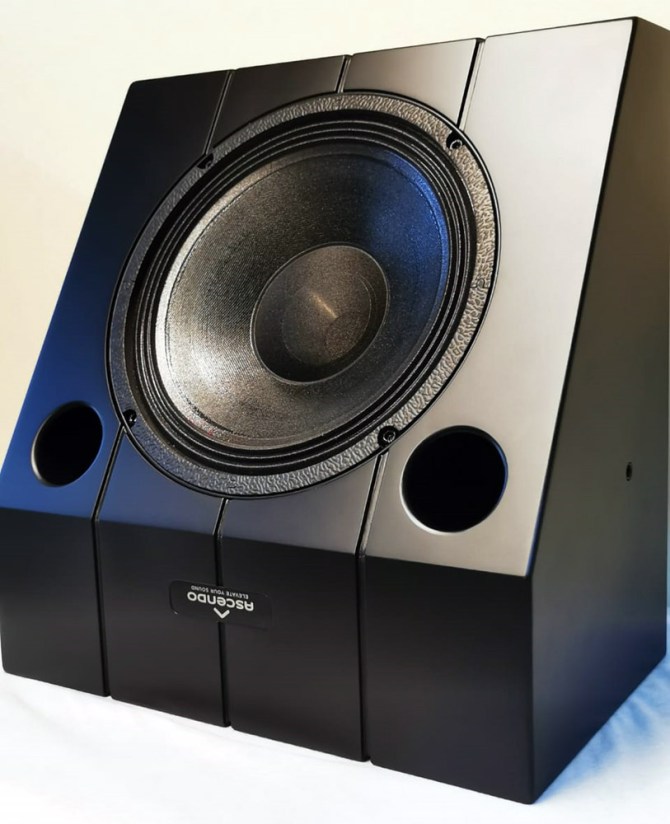

THE10 PASSIVE WEDGE 30 is a pre-angled version of THE10 PASSIVE ON WALL, very compact two-way passive loudspeaker system.
Utilizes a 10” (252mm) Woofer and 1” (25mm) Compression Tweeter
It can be installed in multiple locations where angling the speakers is mandatory.
The multi-purpose WEDGE shaped speakers as front left right, surround, rear surround, wide surround, height surrounds.
The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.
Drawings below show possible speaker positions:
THE10 PASSIVE WEDGE 30 is an enormously dynamic and powerful speaker.
High efficiency, high sensitivity and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.
Specifications:
-Time coherent 10″ coax point-source speaker type
-Vented enclosure
-Continuous Output @ 120dB cont. (123dB Peak)
-Frequency Range: 75Hz – 20kHz / -3dB
-Sensitivity : 98dB / 1W/m
-Impedance : 8 Ohms
-Power Handling : 500W
-Directivity horizontal: 85° x 85°
-Enclosure : Internally braced birch ply
-Black matt finish

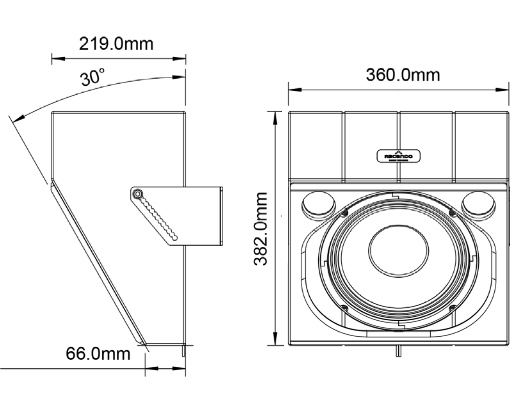

Dimensions: as below diagram
Weight :13.0 kg
*All speakers are supplied with a front magnetic grille.

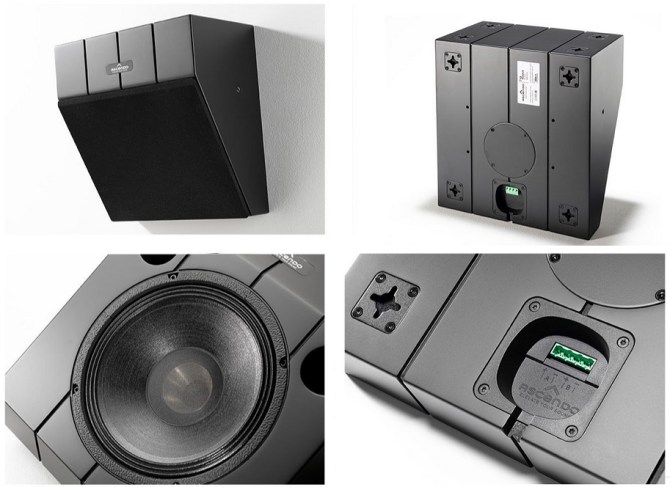

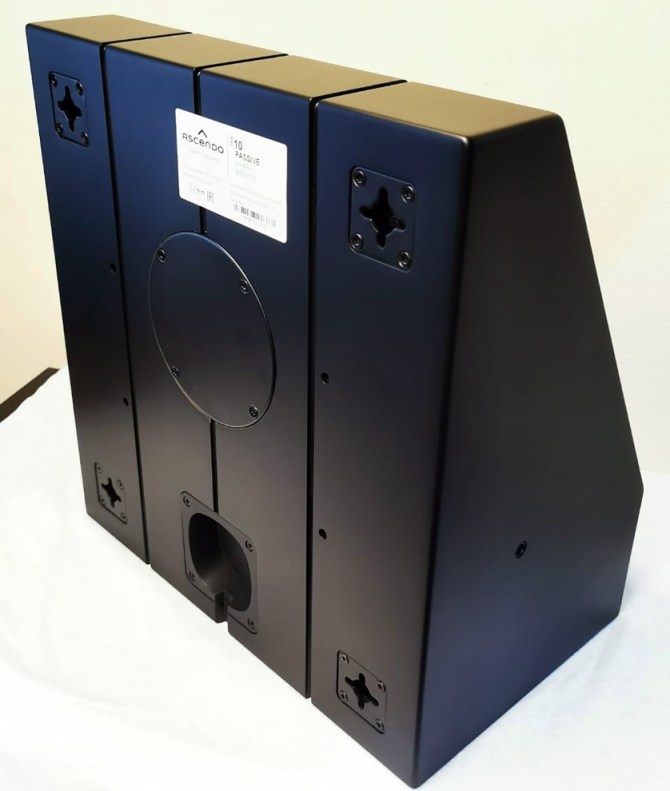

Built-in wall brackets for horizontal and vertical installation + VESA 200 x 100 mounting points
Also comes with mounting brackets that allows to angle the speaker further in two axes.
