- JLINK™ TRX / RX kit connects two line-level audio devices wirelessly
- Bit-perfect, wireless protocol retaining full fidelity of audio signals
- Each JLINK TRX can transmit up to 4 JLINK RX receivers
- Indoor range up to 100 ft (30M), in clear line of sight
- Outstanding fidelity in subwoofer or full-range applications
- with JLINK™ direct connection port for compatible JL Audio products
The JLINK™ wireless audio system is designed for all those situations where running audio signal cables is impractical, BUT audio quality CANT BE COMPROMISED.
JLINK™ TRX connects any 2 line-level audio devices together without the compression of lossy wireless systems.

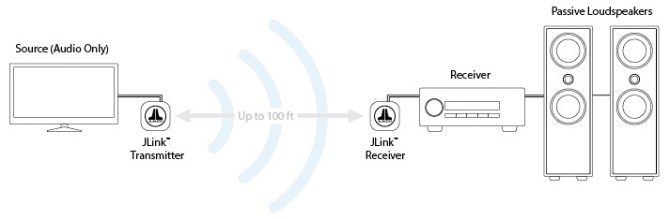

From audio source (player, pre amp) to receiver / pre amp / power amplifier.

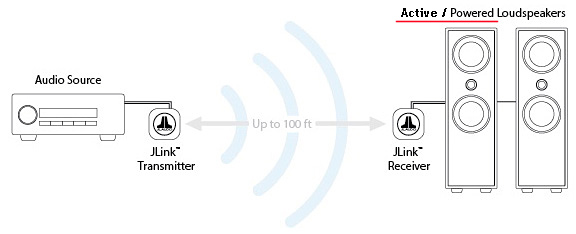

From receiver, player, pre amp etc to active / powered speakers.

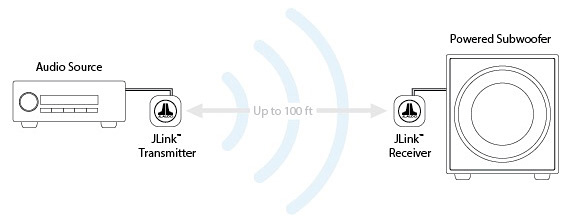

From receiver, processor to active / powered subwoofers.
Bit-perfect, wireless protocol that retails full fidelity of audio signals.
Up to 3 JLINK™ transmitters can be used concurrently (3 channels to choose from)

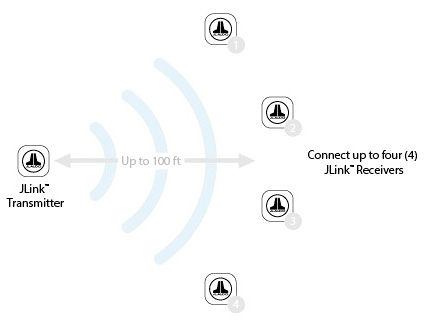

Up to 4 JLINK™ receivers (sold separately) can be paired to each JLINK™ transmitter
• Bit-Perfect Digital PCM Stereo Wireless Technology (16 bit / 48 kHz)
• Indoor range up to 100 feet (30 meters) with clear line of sight.
• Outstanding fidelity in subwoofer or full-range speaker applications

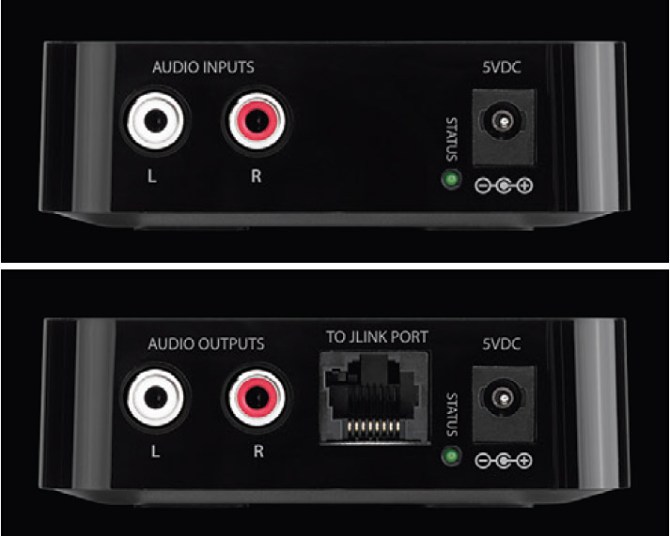

• RCA-type input/output connectors are compatible with most audio equipment
• Receivers include JLINK™ direct connection port for use with compatible JL Audio products
**With JLINK port (like in JL Audio Dominion subwoofers), the JLINK receiver draws power from the subwoofer, without the need for external power adapter.
S/N Ratio: 80 dB @ 1 kHz, 500 mV
THD + Noise: 0.02% @ 1 kHz, 500 mV
Frequency Response: 16 Hz – 22 kHz (+0, -1dB)
Wireless Range: 100 feet / 30 meters (typical)
Wireless Channels: 3 available, selectable via switch
Latency: 14 mS
AC Power Adaptor: 1A, 5V DC
Dimension: W89 x D89 x H28.5 mm (Transmitter)
W89 x D89 x H54.6 mm (Receiver)
Ideal for wireless connection of subwoofers or full-range systems!
