JBL Synthesis HDI-1600 Bookshelf Speaker

  • Designed and engineered in Northridge, California
  • 2.5-way Center Channel Loudspeaker
  • 1-inch (25mm) Teonex compression driver
  • 6.5-inch (165mm) Advanced Aluminum Matrix cone
  • Bass-reflex design with rear-firing port
  • 5-year warranty

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1600 delivers exceptional performance from a compact enclosure. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI) waveguide technology, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer for powerful dynamics and incredibly accurate sound reproduction.

JBL’s revolutionary HDI waveguide geometry is the result of intense research into the nuances of waveguide design. In search of exceptional high-frequency detail and uniform directivity for smooth in-room response, JBL engineers pioneered a design that delivers neutral frequency response both on- and off-axis and provides a seamless transition between the high and low frequency drivers.

The JBL 2410H-2 compression driver benefits from the advanced research and applications derived from JBL Professional’s “D2” range of transducers. At the core of the new 2410H-2 device is a lightweight, polymer, annular diaphragm that improves high-frequency extension by reducing diaphragm mass. The V-shaped geometry of the annular diaphragm reduces breakup modes, eliminating time smear and reducing distortion. The result is incredible dynamics with accurate reproduction and a lack of power compression.

HDI woofers take advantage of core JBL engineering techniques to ensure a very high output with low distortion. The long-throw voice coil in conjunction with the symmetrical field motor design, flux stabilization ring, and copper shorting ring guarantee maximum output with significantly reduced distortion. Advanced Aluminum Matrix cones, provide a lightweight, rigid diaphragm and eliminate breakup modes ensuring proper pistonic motion throughout the operating band.

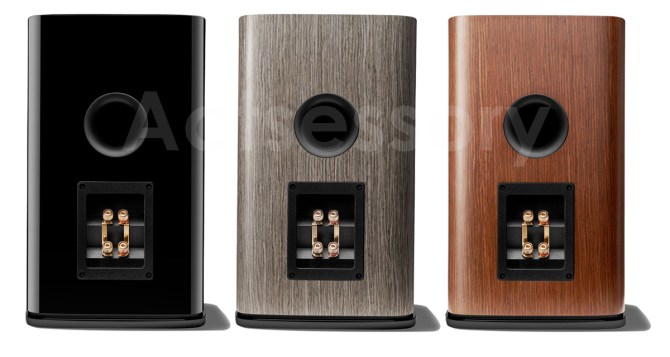

The HDI-1600 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with a rear-firing, computer-optimized flared port. The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. A black cloth, magnetically attached grille completes the elegant appearance.

*Patented HDI (High-Definition Imaging) waveguide technology
*Patented 2410H-2 high-frequency compression driver
*6.5-inch (165mm) cast frame, Advanced Aluminum Matrix cone woofer with 1.5-inch voice coil
*Contemporary design with premium finishes including high-gloss Black, satin Gray Oak wood veneer, and satin Walnut wood veneer

Bass-reflex design with rear firing port
1-inch (25mm) Teonex compression driver
6.5-inch (165mm) black Advanced Aluminum Matrix cone, cast frame woofers
Frequency Response: 40Hz – 30kHz
Impedance : 4 Ohms
Sensitivity: 85dB
Recommended Amp Power: 15W – 200W

Dimensions: H370 x W230 x D294.7 mm
Weight : 9.96kg each

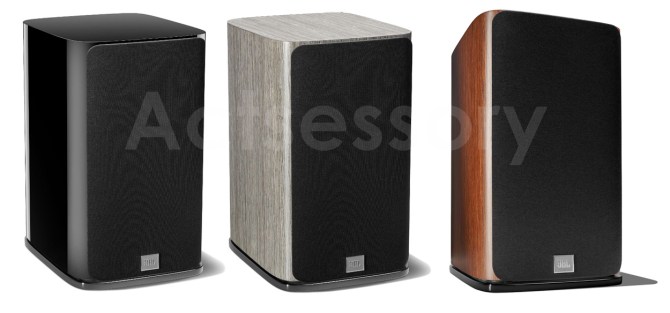

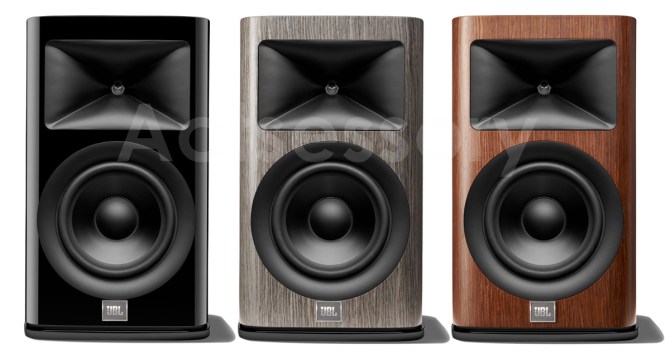

Finishing: High-gloss Black, Satin Gray Oak wood veneer, Satin Walnut wood veneer

Price: RM9,999

5 Years Warranty

**Optional JBL HDO-FS stands @ RM2,799/pair
