JL Audio Fathom f113v2 Subwoofer

  • Ultra-long throw W7 13.5-inch (300mm) driver
  • 3,000W RMS Class D amplifier
  • Digital Automatic Room Optimization (D.A.R.O.)
  • Black Gloss Finish
  • Balanced XLR and unbalanced RCA inputs
  • Sealed subwoofer
  • Made in USA

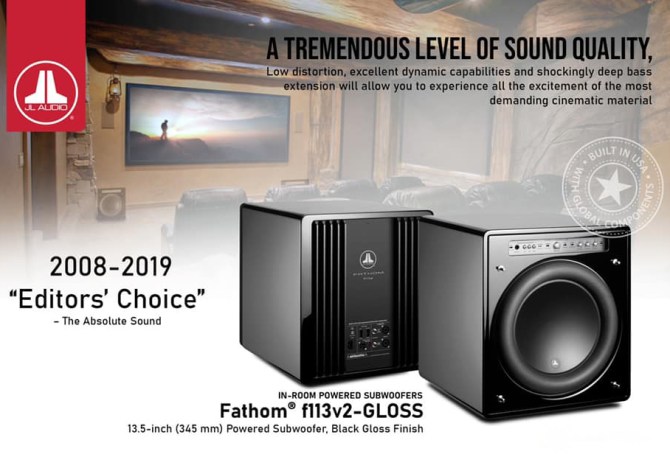

The Fathom f113v2 is a heavyweight subwoofer capable of filling the most demanding rooms with powerful low-frequency output and reference-class sound quality. The combination of an ultra-long throw W7 13.5-inch driver and a very powerful switching amplifier give it the kind of output normally associated with far larger subwoofer systems.

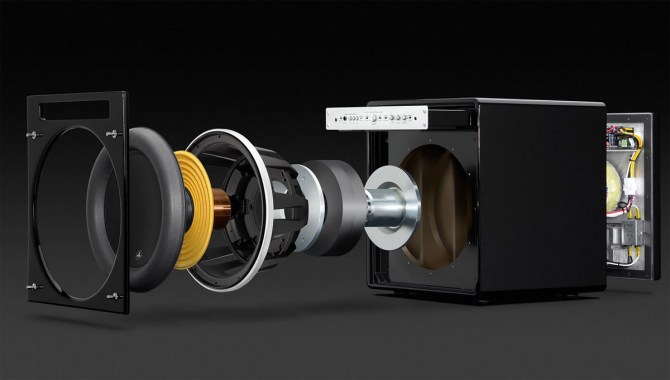

Same driver and amplifier technology as JL Audio flagship Gotham®

Dynamic Motor Analysis – DMA Optimized Motor system vastly reduced distortion and faithfully reproduced transients… or put simply: tight, clean, articulate bass.

W-Cone unit-body cone assembly that delivers astonishing cone stiffness with minimal mass.

Elevated Frame Cooling enhances power handling and sound quality by minimizing dynamic parameter shifts and power compression.

Floating Cone Attach Method – FCAM™ for better excursion control and dynamic voice coil alignment.

OverRoll™ Surround of ground-breaking innovation controls the W7’s massive excursion without sacrificing precious cone area.

The f113v2 delivers a tremendous level of sound quality -low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.

Powerful Digital Automatic Room Optimization (D.A.R.O.) system, with calibrated microphone included.
D.A.R.O technology uses a powerful on-board DSP to automatically optimize the subwoofer’s in-room frequency response, automatically configures an 18-band, 1/6 octave equalizer for a flat end-result. This leads to a superb listening experience, no matter where the subwoofer is placed.

High-Damping Feedback Circuitry allows Class D switching amplifiers to maintain an excellent damping factor for improved transient behavior and fidelity.

Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.

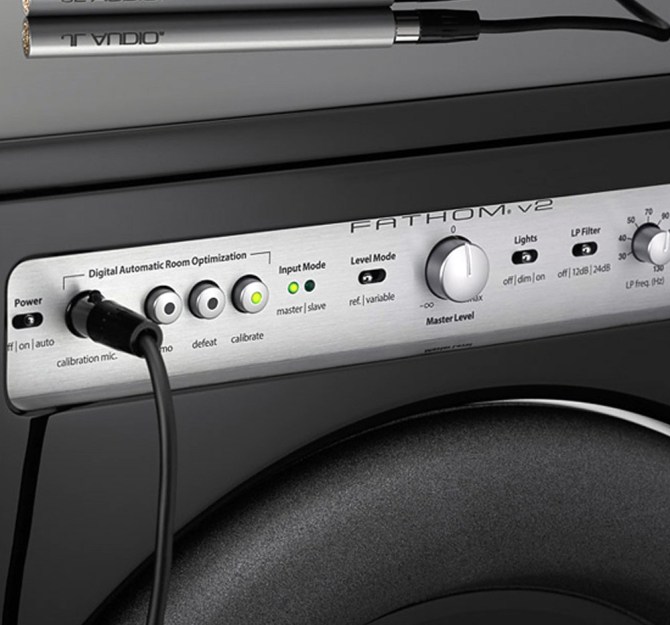

Complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim.

3.0 kW RMS
Frequency Response: 20-127Hz
Phase knob 0-280 degrees variable
Polarity switch
Isolated or Grounded selector
Level Control: Reference or Variable
Filter Modes, Slope, Freq Range knob
Extreme Low Freq (E.L.F) Trim

Dimension: W419 x H489 x D489 mm
Weight : 59.0kg

Precision-built in JL Audio’s U.S. factory, all F-Sub are individually performance-verified and tested to deliver years of listening enjoyment in your home audio or home theater system.

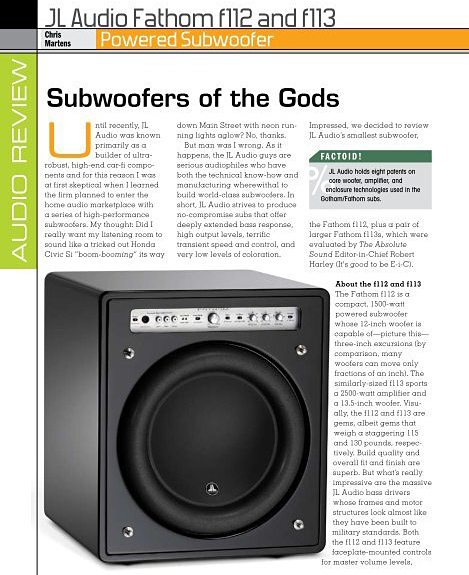

“It was the most intense bass experience I ever hope to have.”
– Kal Rubinson, Stereophile

*UPPER END – JL Audio Fathom f112v2/f113v2 subwoofers
*Golden Ear Award Winner
*Product of the Year
“The JL Audio Fathom is of reference quality and a benchmark by which all other subwoofers can be judged.”

“It was the most intense bass experience I ever hope to have.”
“The Fathoms reproduction of double bass had ear-boggling dynamics and pace.”

The Perfect Vision
The JL Audio guys are serious audiophiles who have both the technical know-how and manufacturing wherewithal to build world-class subwoofers.

Product webpage: https://www.jlaudio.com/products/f113v2-gloss-home-audio-fathom-v2-powered-subwoofers-96142

Multi reviewed / awarded model

Price:  RM27,499

3 Years Warranty
