JL Audio E-Sub e112 Subwoofer

  • 12-inch driver of Dynamic Motor Analysis with VRC and FCAM
  • 3″ peak-to-peak excursion
  • 1,500W RMS Class D amplifier
  • Black Gloss Finish
  • with High-Level inputs
  • Sealed subwoofer
  • Made in USA

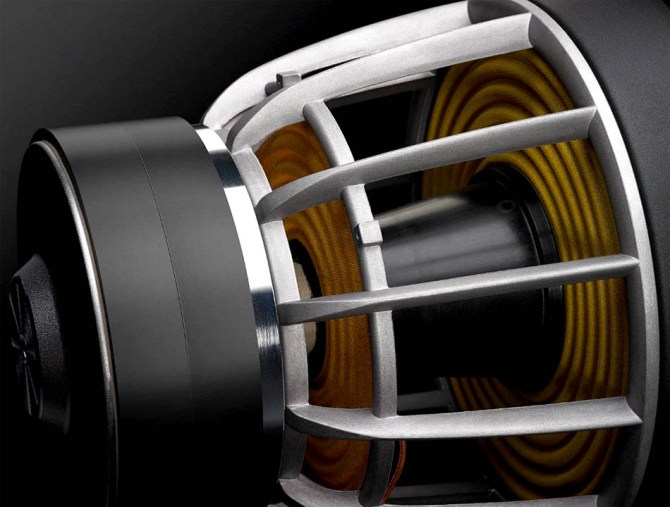

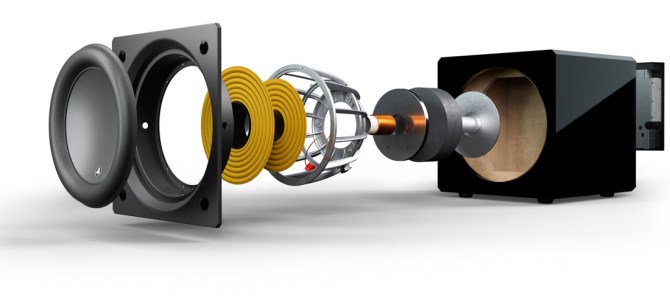

Proprietary and patented design elements carry some pretty beguiling names – “DMA” (Dynamic Motor Analysis), “VRC” (Vented Reinforcement Collar), “FCAM” (Floating Cone Attach Method) and the “Engineered Lead-Wire System”

Exclusive DMA technology optimizes the drivers’ motor strength, ensuring linear behavior over a very long excursion range, by taking into account the dynamic shifts created by current flow and back EMF under real power conditions, leading to superior bass definition and dynamics at all listening levels

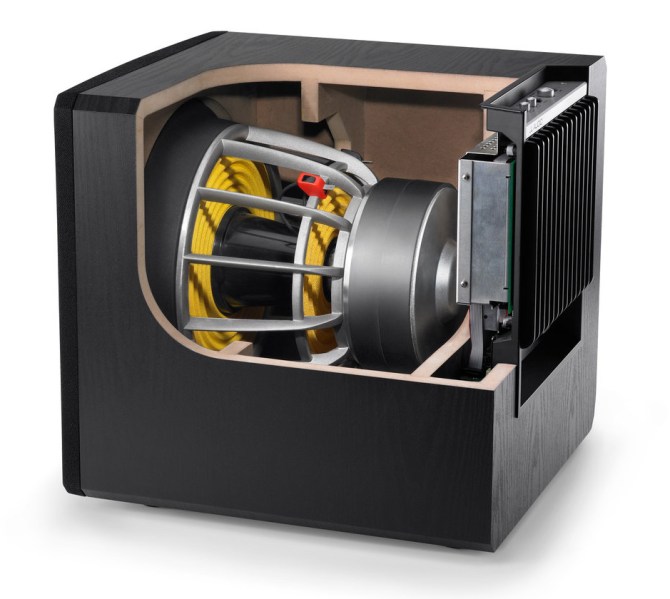

Extreme mounting depth of E-Sub driver imparting exceptional mechanical stability over driver’s full excursion range.

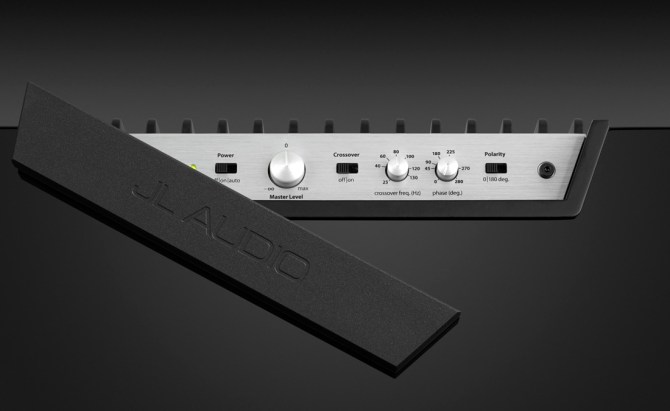

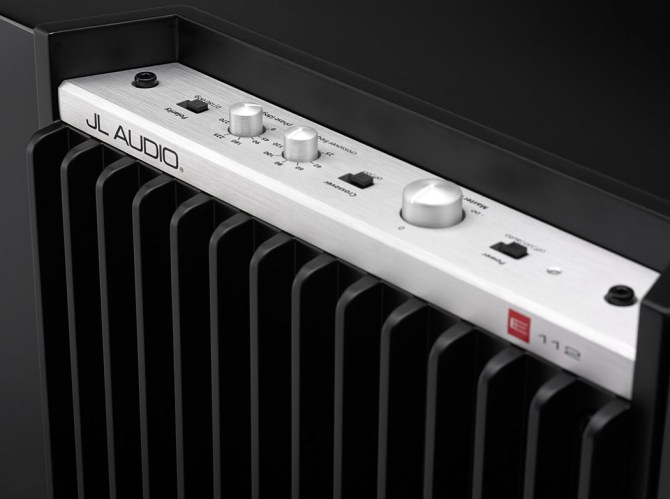

New switching amplfier, conveniently control from cabinet’s top panel, with studio-grade signal processing.

E-Subs is designed to use from home theater system to dedicated stereo music systems, as well as desktop audio workstations.

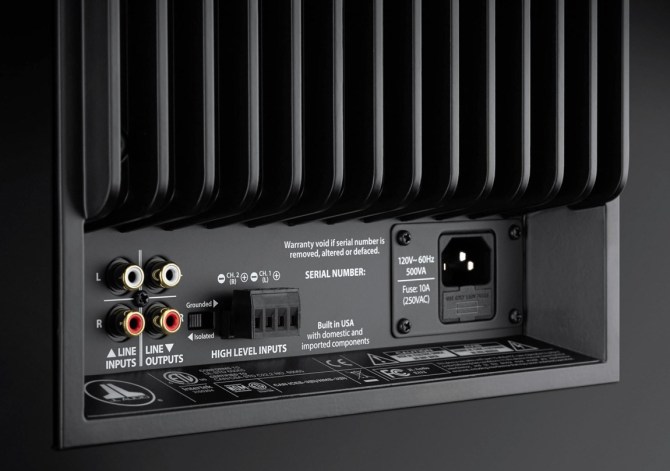

Grounded or isolated switch in combating ground-related noise issue.

True 2-way active crossover, 4th order Linkwitz-Riley design, with a low-pass filter feeding the subwoofer’s amplifier and a high-pass filtered signal exiting its line outputs.

Line outputs deliver a pass-through, buffered signal identical to its line inputs for daisy-chain arrangement.

1500 Watts RMS
Frequency Response: 22-118Hz
Phase knob 0-280 degrees variable
Polarity switch

Dimension: W394 x H412 x D467 mm
Weight : 33.3kg

Precision-built in JL Audio’s U.S. factory, all E-Sub are individually performance-verified and tested to deliver years of listening enjoyment in your home audio or home theater system.

theabsolutesound.com
“This subwoofer takes excellent performance up several notches, reproducing the dynamic, textural, and tonal nuances in acoustic or electric bass playing.
It delivers tremendous bottom-end authority. The combination of finesse and impact that makes the e112 such a stand-out in a crowded field.”

soundstageaccess.com
“E-Sub e112 is an output beast with fidelity to match. That’s worth the asking price in most any system. In fact, its performance makes the e112 the no-brainer buy of the year.”

hometheaterhifi.com
The JL Audio e112 subwoofer impressed me with its output capabilities and tuneful nature. There is no question that this driver, amp and cabinet system represents a holistic subwoofer system that is designed and focused on delivering high octane thrills.

Product webpage: https://www.jlaudio.com/products/e112-gloss-home-audio-e-sub-powered-subwoofers-96279

Multi reviewed / awarded model

Price:  RM11,300

3 Years Warranty
