- 4.5-inch (114mm) Polycellulose Ribbed Cone Woofer
- 1-inch (25mm) Anodized Aluminum Tweeter
- Next Generation HDI™ Waveguide
- Precision 2.5-Way Crossover
- 5-Way Binding Posts
- Magnetically Attached Grilles
- Rear-Firing Tuned Port
- Anti-slip pads
- Wall and 1/4-20 Insert Mounting Options
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, Stage 240B is the smallest bookshelf loudspeaker of the new JBL Stage Series.
This loudspeaker features a 2-way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and a 4.5-inch (114mm) Polycellulose cone woofer that provides deep, signature JBL bass.
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.

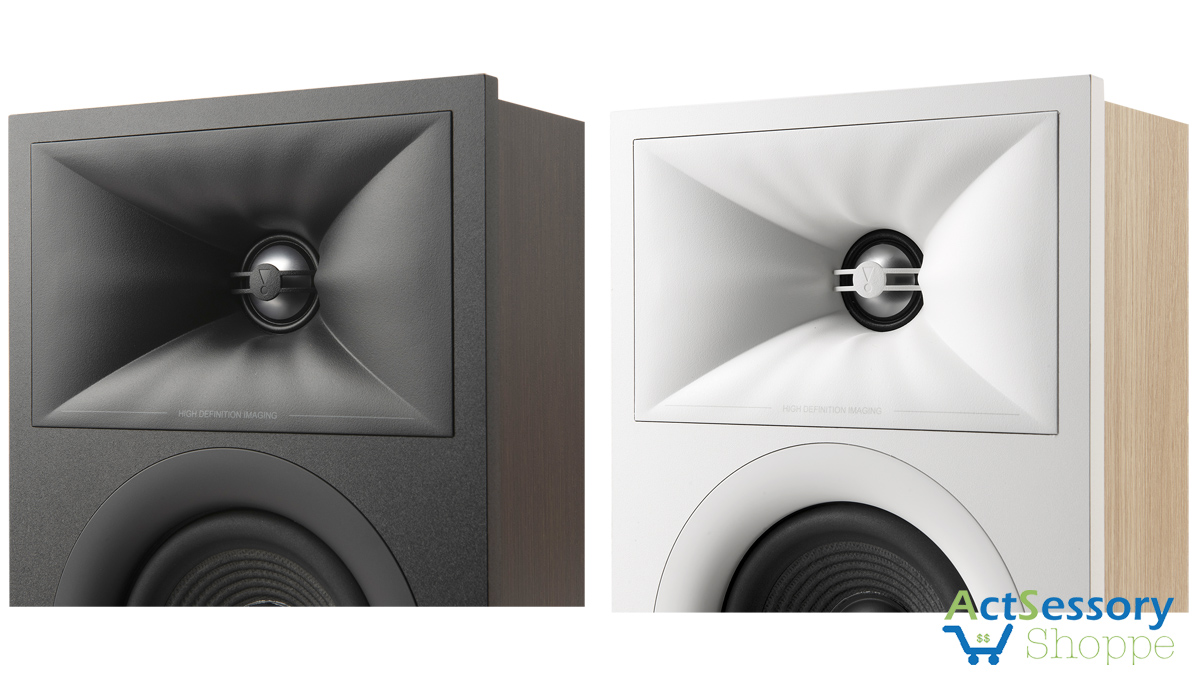

Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics. This new design offers a neutral frequency response both on and off axis.
Premium components are used to construct the crossovers fitted to the Stage 2 line. The High frequency section features air core inductors and mylar capacitors that reduce distortion and improve sonic performance. The low frequency section includes laminate core inductors and electrolytic capacitors. These premium materials can handle more power and transmit energy faster elevating system performance.
Sturdy 5-way binding posts provide the listener with their choice of high-quality connection.
They also match the binding posts on the JBL MA AV receivers, carrying the cohesive look throughout.
Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating frount baffle design – upscale features not typically found on loudspeakers in this price range.
A flared port is featured on the 240B. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or colaration of output.
The 240B includes anti slip pads to hold the speaker securely in place to minimize vibrations.
It includes and a bracket for easy attachment to a wall and an industry standard 1/4-20 threaded insert for use with aftermarket mount systems.

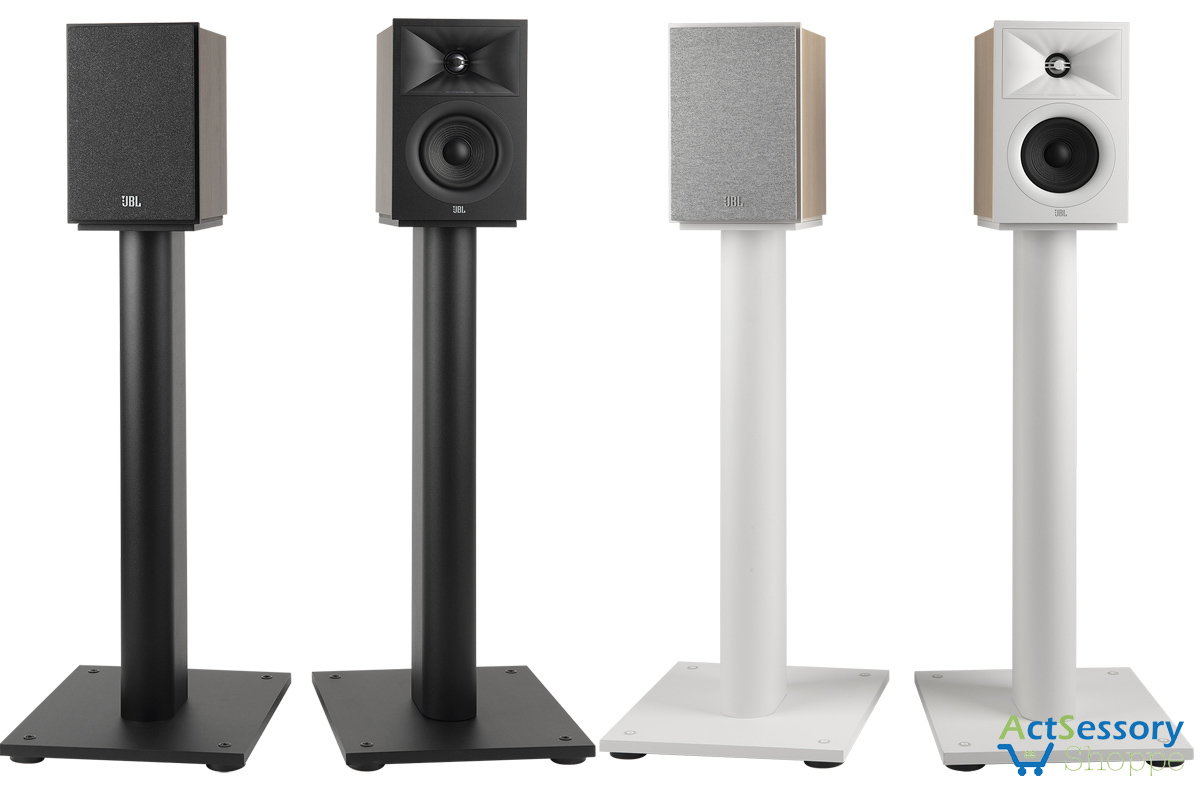

**Stand sold separately**

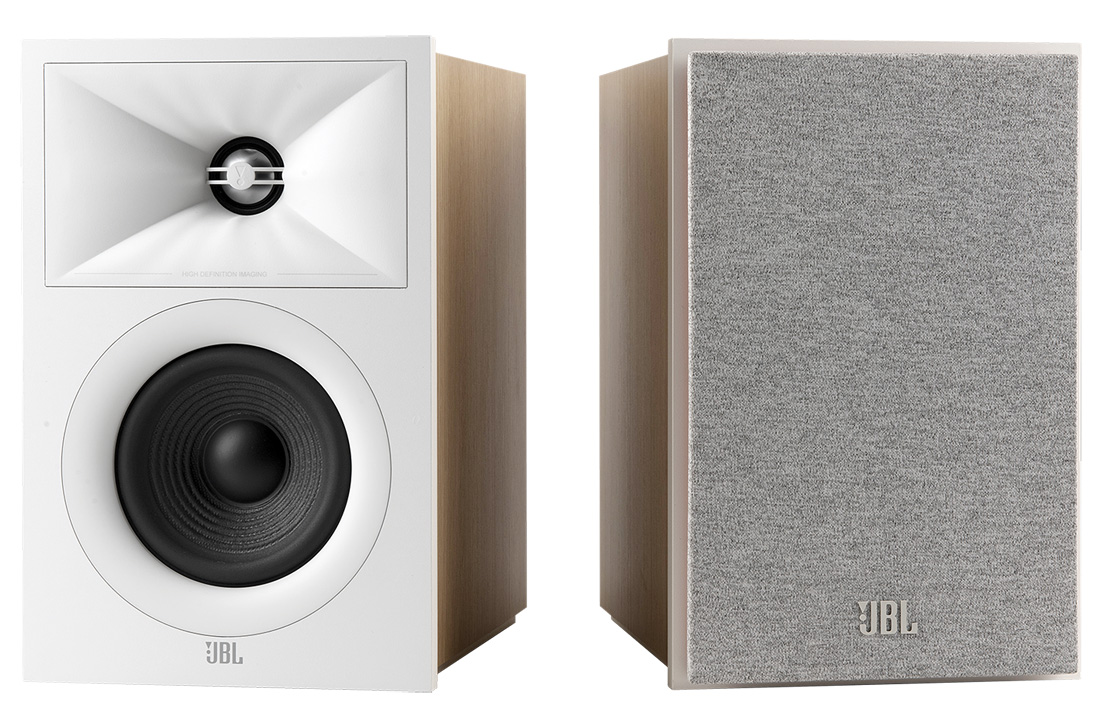

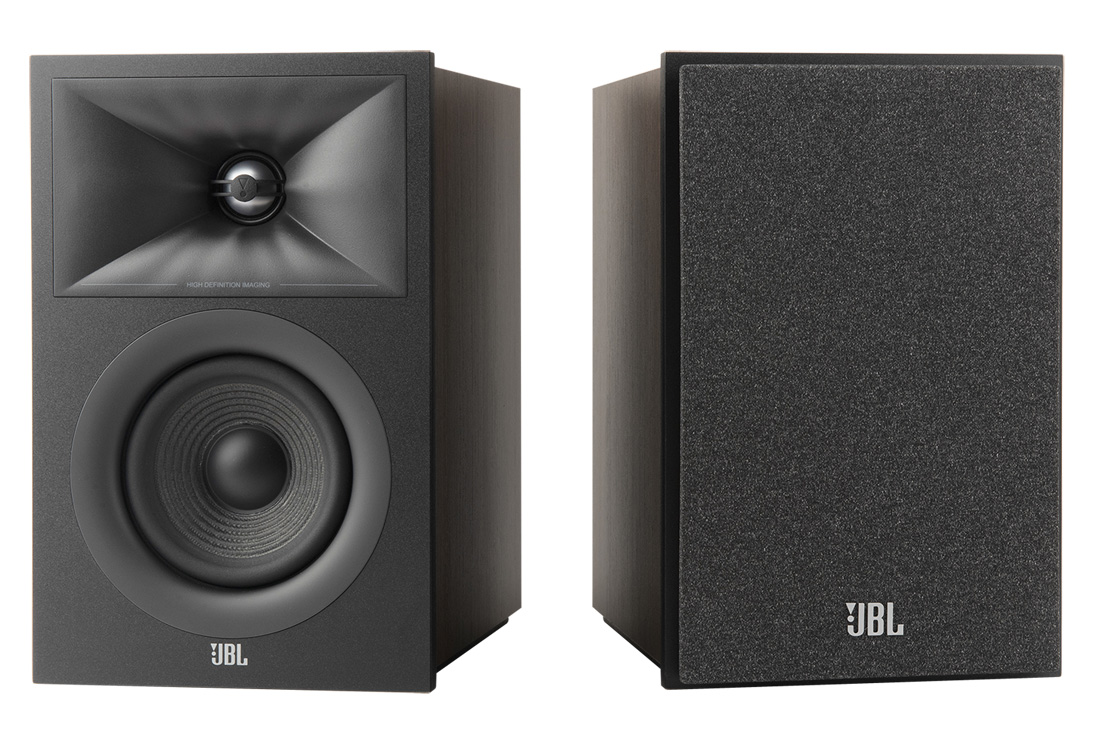

Available in Espresso or Latte woodgrain finish with solid color front baffles and matching grilles.
2-way bass reflex
4.5-inch (114mm) Polycellulose Ribbed Cone Woofer
1-inch (25mm) Anodized Aluminum Tweeter
Next Generation HDI™ Waveguide
Frequency Response: 53Hz – 25kHz
Sensitivity : 85dB
Norminal Impedance: 6 Ohms
Recommended Amp Power: 20-125W
Finish: Espresso (Black baffle), Latte (White baffle) woodgrain finish
With matching grilles
Dimension: H272 x W175 x D217 mm
Weight : 4.6kg
